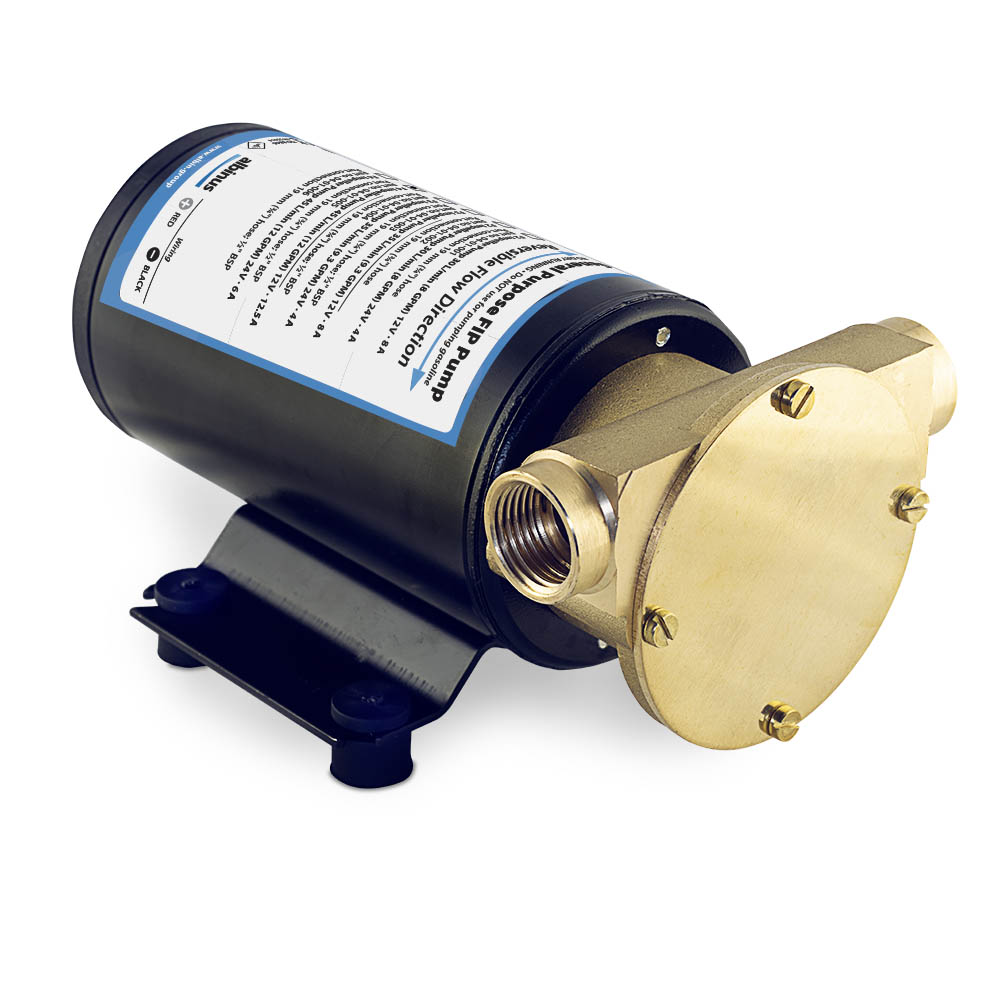

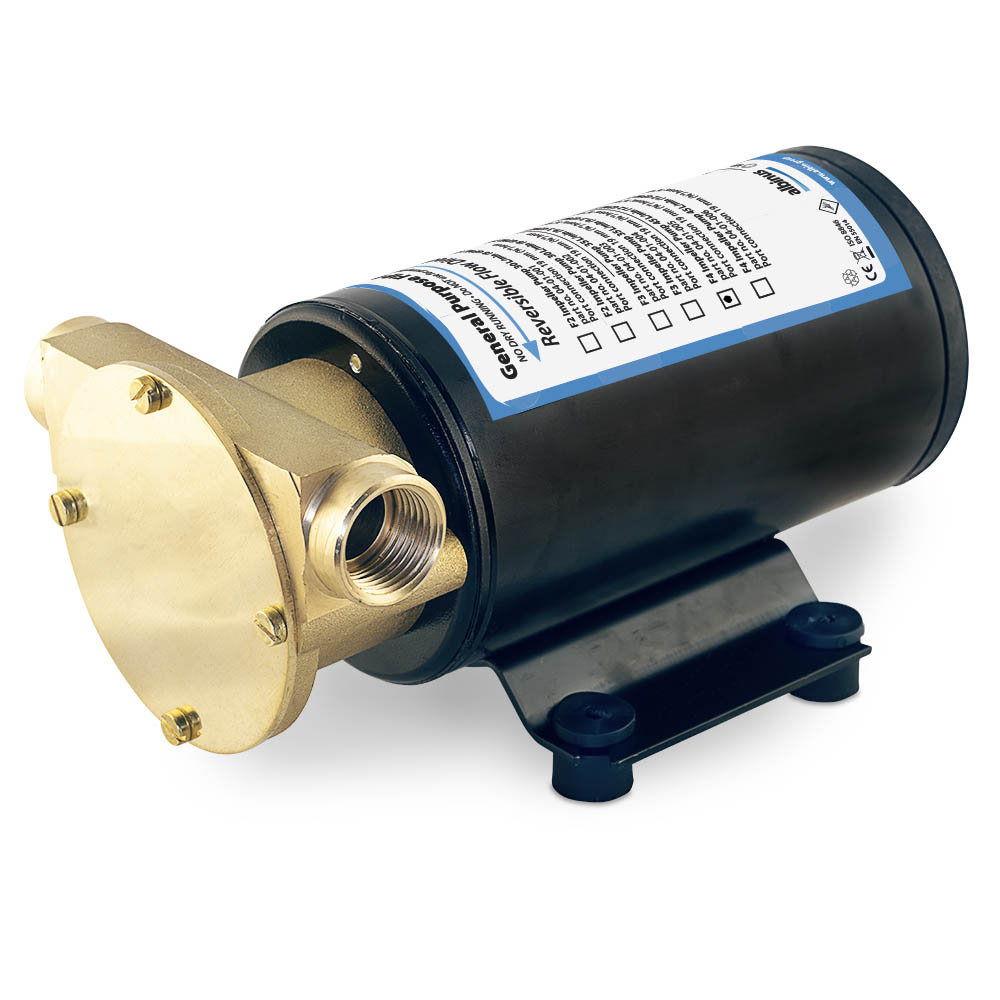

General Purpose Pump FIP F4 24V
DC 24V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals. Pump body in brass, stainless steel shaft and PN 06-01-009 Nitrile impeller. Port connections 19mm (1/2"), self priming up to 5m vertical lift. Reversible flow direction, 6A fuse. Interchangeable with Johnson Pump 10-24689-02.
Manual for General Purpose Pump FIP_Albinus_EN-v1.pdf
Additional Information
| Weight | 1 kg/2 Lb |
|---|---|
| Dimensions | 180/7L x 90/3.5H x 120/4.7W mm/in |
| Type | Reversible flow direction by changing polarity |
| Certification | CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance |
